Aspheric lenses can achieve high imaging quality and reduce aberrations within a small volume. However, the advantages of aspheric lenses also bring significant manufacturing challenges. The complex surface geometry and stringent precision requirements mean that even tiny errors can directly affect performance. Therefore, understanding the different manufacturing methods and their applicable scenarios is essential.
The manufacturing method not only determines the final precision of the lens but also affects production cycle, cost, and batch consistency. When selecting a process, material type, lens size, surface complexity, and production quantity are all factors that need to be considered together. This article will analyze the mainstream manufacturing methods for aspheric lenses from the perspectives of technical principles, applicable materials, and advantages and disadvantages.
The Challenges of Aspheric Lens Manufacturing
The difficulty in manufacturing aspheric lenses stems first from their surface design. Unlike spherical surfaces, the curvature of an aspheric lens changes continuously across the optical surface, meaning traditional grinding and polishing processes cannot be directly applied. At the same time, different optical materials have vastly different hardness and chemical properties – for example, the processing techniques for glass, crystals, and optical plastics are completely different. For harder materials, precision cutting and polishing require extremely high equipment precision. For plastic materials, mold shrinkage and thermal expansion/contraction effects on molding accuracy must be considered. Furthermore, batch consistency is a major challenge. While small-batch production of high-precision lenses is relatively controllable, maintaining the shape, surface finish, and center thickness of every lens within tolerance during mass production is significantly more difficult.
Analysis of Mainstream Manufacturing Methods

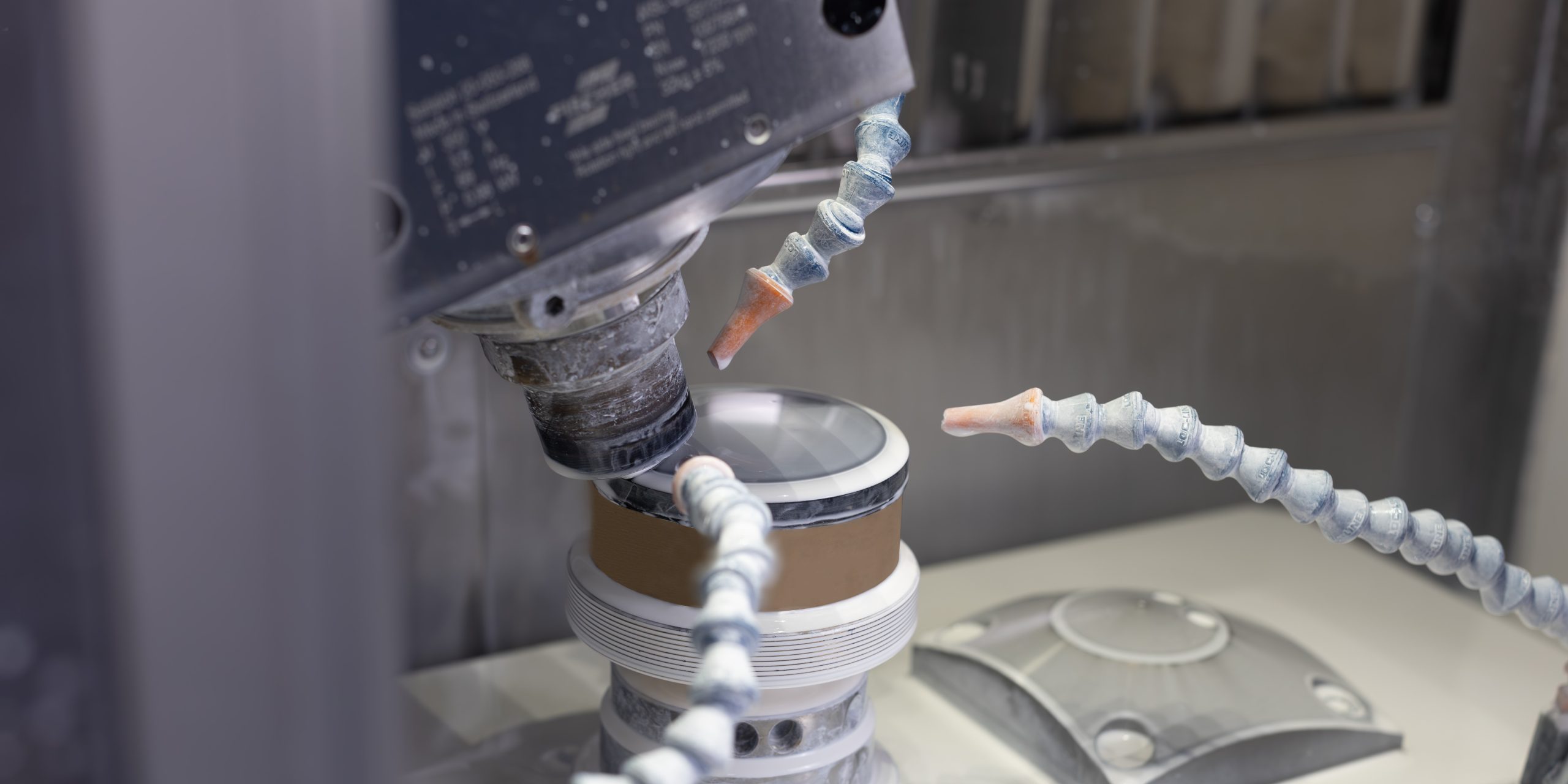

Precision Grinding and Polishing
Precision grinding and polishing are traditional manufacturing methods for aspheric lenses, suitable for high-hardness glass and crystalline materials. This method typically involves three stages: rough grinding, fine grinding, and final polishing. The rough grinding stage removes most of the material to form an initial surface. The fine grinding stage further approaches the design surface through fine cutting. The final polishing stage ensures optical-grade surface smoothness.
The advantage of this method is that it can achieve very complex aspheric shapes. However, precision grinding and polishing have low efficiency and high equipment and labor costs, making them unsuitable for mass production. Typically, this method is used for research or small-batch high-precision optical components, such as astronomical telescopes or laboratory laser systems.
Injection Molding and Precision Molded
Injection molding and precision Molded both involve designing high-precision molds, injecting material into the mold cavity under high temperature and pressure, then cooling and post-processing to form the required aspheric lens. Glass Molded uses techniques such as stepped temperature control to achieve even more fine results. The biggest advantage of molding is high throughput and low unit cost, making it very suitable for consumer electronics, automotive optics, and large-scale industrial applications.
However, this process requires extremely high mold precision, and mold design and fabrication cycles are long. The thermal expansion coefficient of plastic materials also affects the final lens dimensions. To overcome these limitations, precision polishing or surface finishing is often performed after demolding.
CNC Diamond Turning
CNC diamond turning is a high-precision manufacturing method for high-hardness materials and complex aspheric surfaces. Using a diamond tool to cut material along a programmed path, it can achieve single-piece custom or small-batch high-precision lenses. CNC diamond turning can precisely control surface shape and maintain center thickness and curvature variations within tight tolerances. It is a common manufacturing method for optical crystals, infrared lenses, and research-grade laser systems.
Although CNC diamond turning is more efficient than precision grinding, the processing speed is still relatively slow, making it difficult to support mass production. At the same time, it requires extremely high tool wear resistance and machine stability, and equipment costs are high. This method is suitable for high-precision, complex-surface aspheric lenses, especially in research and high-end industrial applications.
Optical Polishing and Ion Beam Figuring
Optical polishing and ion beam figuring are typically used for final surface precision finishing. Optical polishing uses polishing compounds or nanoparticles to gradually remove microscopic surface defects, achieving sub-micron smoothness. Ion beam figuring uses high-energy ions to bombard the material surface for shape correction. These two methods are often used in combination with precision grinding or CNC diamond turning to ensure the lens achieves extremely high optical precision.
The advantage of these methods is their extremely high precision, capable of correcting microscopic surface errors and improving lens imaging performance and optical consistency. The limitations are long processing cycles and high equipment costs, so they are mainly used in demanding optical components, laser core components, and research instruments.
Hybrid Manufacturing Methods
In most professional optics factories, many high-performance aspheric lenses are produced using hybrid methods. For example, CNC diamond turning is first used to achieve the approximate surface shape, followed by precision polishing or ion beam figuring to correct microscopic surface errors. This approach can achieve even finer surface precision.
Manufacturing Method Selection Guide
Selecting the manufacturing method for an aspheric lens requires comprehensive consideration of material type, lens size, surface complexity, and production volume. For research or small-batch high-precision needs, precision grinding, CNC diamond turning, and ion beam figuring are the preferred solutions. For applications requiring large volumes or mature technology, injection molding or precision molding – although initial mold costs are high – can save significant costs overall in later stages, with fast turnaround, high-volume capability in short time, and good yield. By understanding and evaluating the advantages and disadvantages of each manufacturing method, you can find a qualified supplier that balances precision, cost, and output.
Hobbite uses flat molding (non-isothermal molding) for its aspheric lenses. This is an advanced molding process that uses stepped temperature differences across the mold to achieve an aspheric surface curvature that more perfectly matches the design concept, meeting stringent technical requirements. Hobbite has obtained ISO and other professional certifications, making it a professional aspheric lens supplier worthy of your cooperation.
Conclusion
There is a rich variety of manufacturing methods for aspheric lenses, each with its own applicable scenarios and technical characteristics. Understanding the manufacturing process not only determines the optical performance of the lens but also affects product cost and production cycle. From precision grinding to molding, from CNC diamond turning to ion beam figuring, these are all key to ensuring high performance and high reliability of aspheric lenses.
