A roll-up door for a box truck is not just a closure located at the back of a vehicle. It is opened and closed many times, is subjected to the strain of daily loading, and must be aligned correctly to keep cargo protected from the outside elements. As hinges, rollers, cables, locks, or seals wear, the whole door may become more difficult to operate and less reliable.
It is not enough to replace an obviously damaged part to maintain this system. The replacement part should be suitable for the type of door, ensure smooth operation, and meet the mechanical stresses of the commercial vehicles. When it comes to door functionality, the right hardware can help restore that functionality, helping to cut down on unnecessary downtime and repeat repairs.
-
Understanding the Hardware Behind Smooth Door Movement
A roll-up door relies on a number of parts to function properly. The door sections are joined together with hinges, and the curtain is rolled up and down by passing through tracks with the help of rollers. Brackets are used for support, and closure assemblies are used to keep the door in place.
In this context, whiting door parts play a crucial role in ensuring the compatibility of box truck door systems. A variety of components are available in the Whiting style, which means that worn hardware can be replaced without replacing the entire door.

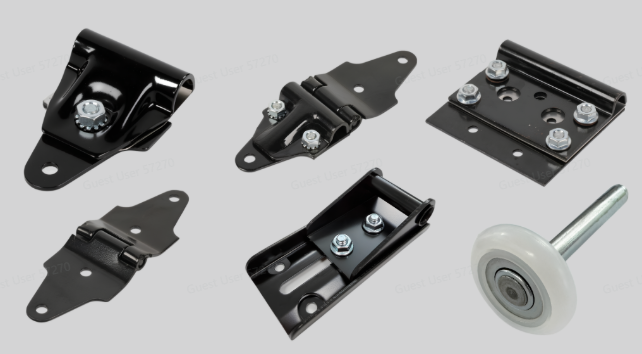

Essential Movement Components:
-
End and center hinges: Help connect door sections and maintain controlled articulation.
-
Nylon or steel rollers: Guide the door along its tracks and influence movement resistance.
-
Top brackets: Support the upper portion of the door mechanism.
-
Bottom roller brackets: Help position the lower hardware and maintain proper track engagement.
-
Top closure assemblies: Complete the upper structural and closing arrangement.
The condition of these parts directly affects how consistently the door travels. A damaged hinge can alter section alignment, while worn rollers may increase friction and create uneven movement.
-
Strengthening the Lifting and Balance Mechanism
One of the most important aspects to pay attention to is the lifting system, as a box truck roll-up door may be large and heavy. All of these components, such as cables, drums, winding cones, anchor brackets, and hardware, are integrated into a lifting system that distributes lifting forces and regulates door movement.
Even if the cable is replaced, it can’t make up for a damaged drum or improperly placed bracket. Therefore, maintenance should take the lifting assembly as a whole and not as an assembly of disjointed parts.

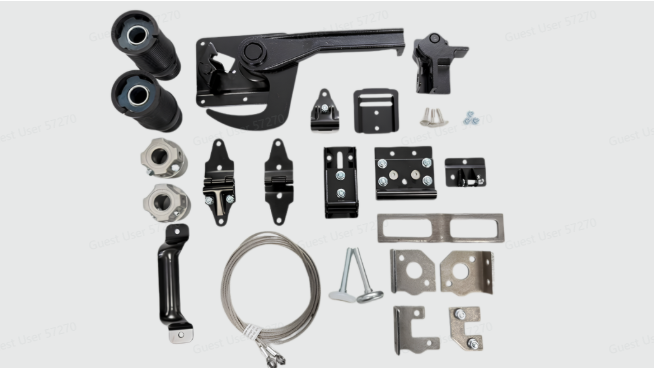

Components That Support Door Balance:
-
Cable assemblies: Carry lifting forces through the door mechanism.
-
Cable anchor brackets: Anchor cable position in the assembly.
-
Cable anchor U-bolts: Anchor connections at specified locations.
-
Cable drums and bearings: Control the travel of the cables with the door movement.
-
Winding cones: Balancing mechanism and support controlled operation.
The right material is also essential. Typically, high-strength steel, galvanized steel, and tough nylon are used in various situations, depending on the mechanical function and exposure of the component.
-
Improving Locking, Access, and Weather Protection
The ease with which a curtain rolls up isn’t the only measure of door performance. The door should also be tightly closed, easily accessible to operators, and help to restrict dust, wind, and moisture ingress. Locks, handles, seals and track protection are all significant components of the system.
Standard and stainless-steel lock assemblies can be used for varying operating and environmental needs. Lock handle keepers and latch plates are used to ensure the desired locking relationship, and lift handles are used as a convenient point for manual operation. Pull-down straps are also available to help with controlled handling as required by the door configuration.
Sealing components do another (but no less valuable) function. Side seal vinyl and bottom seals reduce potential openings around the door. A rubber track bumper kit can be used to further protect within the track area, which can help to minimize unneeded impact during operation.
-
Maintaining the Balancer and Supporting Hardware
The balancing system depends on proper mounting, and the supporting hardware has to be installed in the proper place. Balancer brackets may be installed either on a roadside, curbside, or center position, and center clamps may be installed to provide additional support in the assembly.
Although small in comparison to cables and drums, step bolts and self-locking nuts are not to be underestimated. Fasteners are used to hold important components in place, and improper or loose fasteners may impact alignment and stability.
Technicians replacing these parts should check dimensions, mounting locations, door configuration, and the condition of other nearby parts. When a part has failed and another, seriously worn, mating part is still in service, replacing the failed part can negate the benefit of the replacement.
-
Selecting Replacement Parts With Manufacturing Precision
Quality begins before a part is put in. Misalignments, unsuitable materials, inconsistent machining, and poor production control are critical for parts that must function together when the door assembly is in motion.
Working with an experienced manufacturer can also make sourcing easier for fleet operators, repair businesses, and door distributors. Whether it’s a single box truck roll-up door part or a bulk production order, Gemax provides both manufacturing and standard and custom parts.
For example, custom manufacturing can be beneficial when a needed part needs to be a specific size, be installed in a specific way, be made from a specific material, or be packaged a certain way. Drawings, samples, and technical specifications can be used to give a realistic basis for a replacement component, rather than relying on assumptions.
-
Building a Smarter Replacement and Maintenance Strategy
One of the keys to a good maintenance program is to focus on wear detection before it can cause failure during operation. Regular inspections of the hinges, rollers, cables, brackets, locks, and seals can detect any motion, alignment, fastening, or surface condition variations.
Maintenance personnel can determine if parts need to be replaced by checking for functional symptoms like higher operating resistance, irregular positioning of the cables, irregular door travel, damaged rollers, loose hardware, or bad seals. This is a way to link the problem to the mechanical cause.
Having readily available replacement parts when they are needed can also reduce the repair time. Standard parts are more readily available when the specification has been determined, and custom parts are easier to design, since drawings and measurements have been taken in advance.
Conclusion
Box Truck Roll-up Door Upgrading is all about the re-establishment of the relationship between the moving, lifting, locking, and sealing components. The door is moved with hinges and rollers; cables and drums control its lifting mechanism; brackets are used to reinforce the structure; and locks, handles, and seals ensure its function and protection.
Replacement hardware for the Whiting style should be carefully chosen to ensure that maintenance is more systematic and reliable door function is maintained. With accurate specifications, durable materials, careful inspection, and reliable manufacturing, replacement parts are more than just fixes—they are a practical solution to help keep commercial door systems operational, in balance, and ready to serve for future use.
