Humanoid robots are getting more attention because they are designed to work in spaces built for people. They may need to walk through a warehouse, pick items from shelves, carry tools, open doors, or assist with repetitive physical tasks.
But human-like movement is hard to achieve. A humanoid robot does not only need smart software. It also needs a motion system that can turn commands into smooth, stable, and controlled movement.
That is where actuators become essential. They are the parts that make the robot move.
Quick Takeaway
Humanoid robots depend on actuators for walking, balance, arm movement, and gripping. A good actuator is not only about power. It also needs compact size, smooth torque output, fast response, heat control, and accurate feedback.
Why Actuators Matter in Humanoid Robots
A humanoid robot has many joints, and each joint has a different job. The hips and knees help support the body. The ankles help with balance. The shoulders and elbows control arm movement. The wrists and fingers handle smaller, more precise tasks.

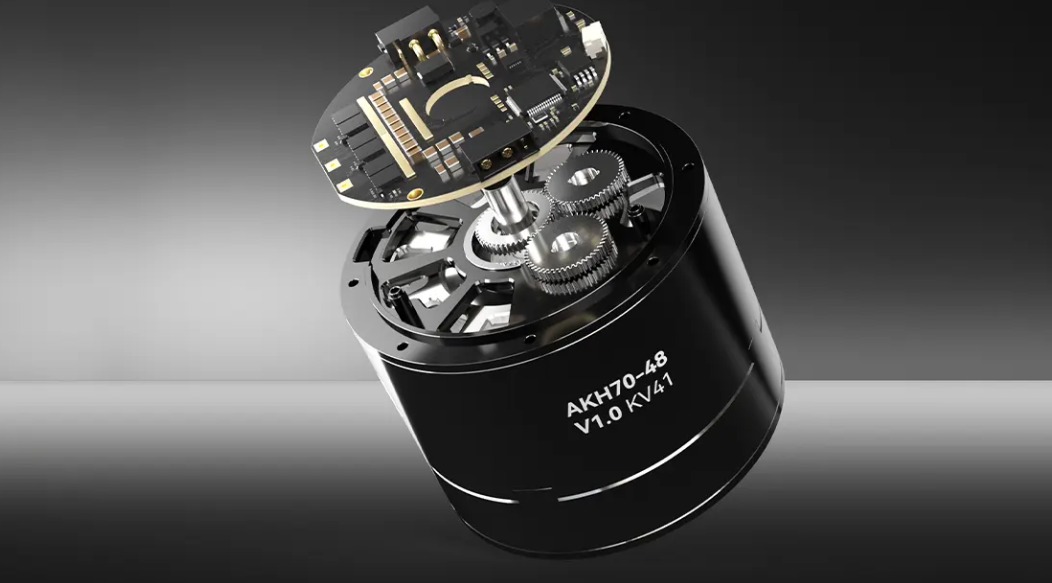

In a complete humanoid system, a robotic actuator is more than a simple motor. It may include a motor, gearbox, encoder, driver, and feedback system in one compact unit. These parts work together to control joint movement with the right amount of force, speed, and accuracy.
If the actuator is too weak, the robot cannot lift or support itself well. If it is too heavy, the whole robot becomes harder to control. If feedback is poor, the robot may move roughly or react too slowly.
Key Joint Requirements in Humanoid Robots
Different joints place different demands on actuators. A finger joint does not need the same power as a knee joint. An ankle actuator does not behave like a shoulder actuator.
| Robot Joint | Main Function | Actuator Requirement |
| Hip | Leg swing and body support | High torque and stable output |
| Knee | Walking, squatting, lifting | Strength, durability, heat resistance |
| Ankle | Balance and ground contact | Fast response and fine control |
| Shoulder | Arm lifting and positioning | Torque, range of motion, stability |
| Wrist | Rotation and object handling | Precision and smooth movement |
| Fingers | Gripping and touch control | Compact size and force control |
This is why actuator selection and design are so important in humanoid robots. Every joint affects the way the whole body moves.
Walking Is a Full-Body Control Problem
Walking may look simple, but for a humanoid robot, it is one of the hardest tasks.
Every step shifts the robot’s center of gravity. For a short moment, the robot may be supported by only one foot. The hip must move the leg forward. The knee must control bending and extension. The ankle must adjust the foot angle and help keep the body stable.
These actions must happen together.
If one actuator reacts too slowly, the robot may stumble. If one joint is too stiff, the movement may look unnatural. If torque control is poor, the robot may lose balance when stepping on uneven ground.
A practical example is a robot picking up a box from the floor. The knees and hips must generate enough torque for the body to squat and stand. The ankles must keep balance. The arms must hold the box without shaking. This simple task depends on several actuators working at the same time.
What Makes a Good Humanoid Robot Actuator?
A strong actuator is useful, but strength alone is not enough. Humanoid robots need a careful balance of several factors:
- Torque: enough force to move or support the joint
- Weight: low mass so the robot stays efficient
- Feedback: accurate data for position and force control
- Heat control: stable performance during repeated movement
- Low backlash: less looseness for smoother motion
- Compact design: easier integration into arms, legs, and hands
Torque density is especially important. It means how much torque an actuator can produce compared with its size and weight. Higher torque density allows the robot to stay powerful without becoming too bulky.
Heat control also matters. Walking, lifting, and squatting can place continuous load on joints. If actuators overheat, the robot may lose performance or need to stop working.
Robotic Arms Need Both Strength and Control
Humanoid robot arms must handle a wide range of tasks. They may lift objects, push carts, open doors, or hold tools. These tasks require strength, but they also require control.
A poorly controlled arm can overshoot its target, apply too much force, or move in a stiff way. That can be risky when the robot works near people or handles fragile objects.
Good actuator control allows the arm to move with smoother force. It helps the robot adjust when an object shifts, when a surface pushes back, or when the task requires a softer touch.
Gripping Depends on Fine Force Control
The hand is one of the most difficult parts of a humanoid robot. A human hand can hold a heavy tool, pick up a small part, or handle soft material without crushing it. For robots, this requires precise force control.
Finger actuators must be small, responsive, and accurate. They need to control pressure, not just position. A plastic bottle, a metal tool, and a soft fruit all require different grip forces.
This is where sensors and actuator feedback become valuable. They help the robot understand whether it is holding an object securely or applying too much pressure.
Final Thoughts
Humanoid robots may seem exciting because of their intelligence, appearance, or human-like behavior. But their real performance depends heavily on actuator technology.
Actuators decide how smoothly a robot walks, how safely it balances, how naturally its arms move, and how carefully it grips objects. As humanoid robots move closer to real-world use, better actuators will continue to shape what they can actually do.
