How Borehole Cameras Help Identify Underground Well Problems

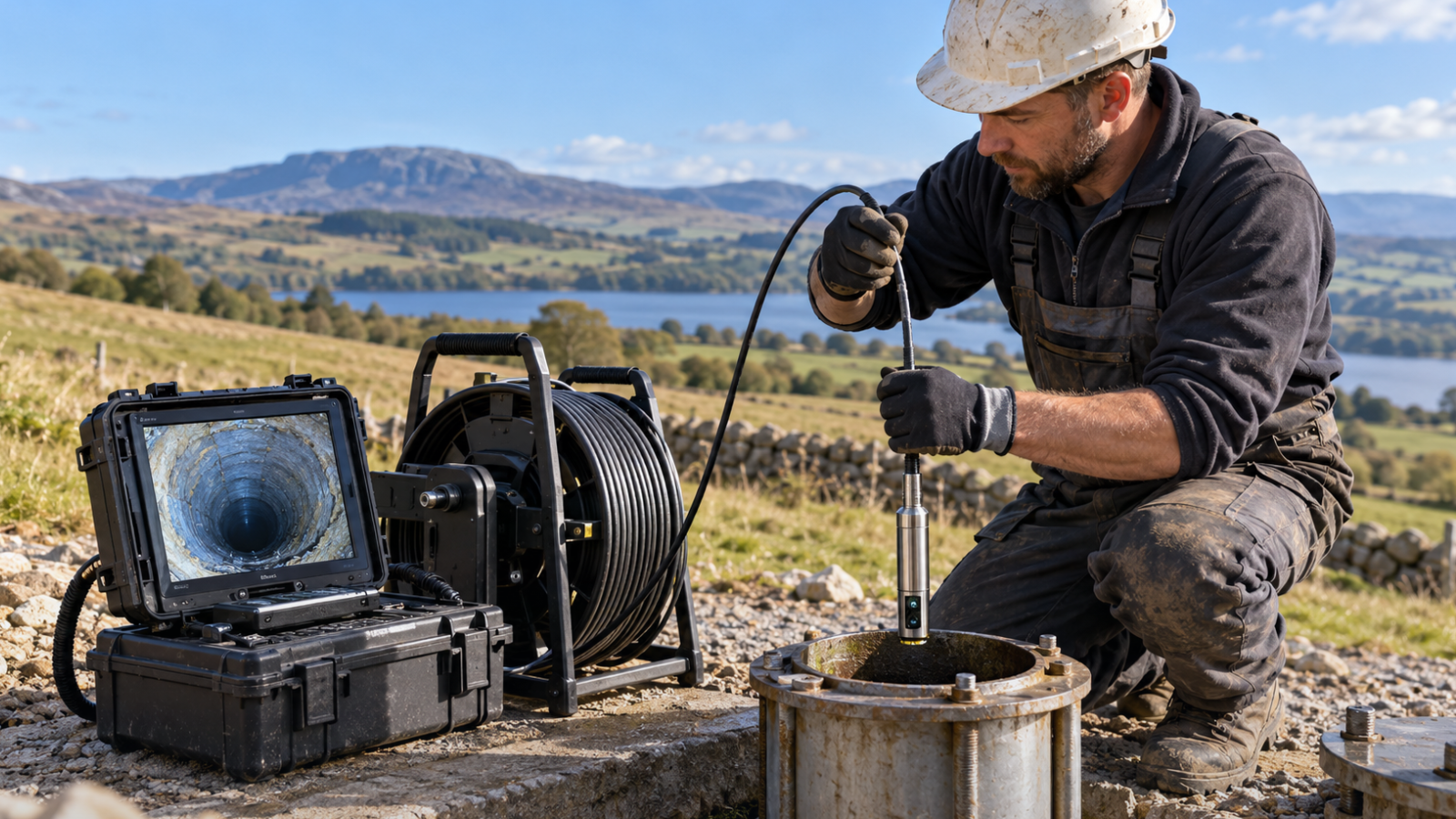

Water wells are essential for homes, farms, and businesses, yet most people rarely think about what goes on inside them until a problem arises. When water quality drops or flow decreases, the only way to know what is happening down there is to look. That is exactly where ProxyViz borehole cameras come into the picture. These downhole video inspection systems are designed to give users a clear view of what is happening beneath the surface without the hassle and high cost that often comes with traditional inspection equipment.
What Makes These Cameras Stand Out
The first thing that catches attention is the imaging quality. Each camera captures 1080P video along with 11.9 megapixel still images. That combination of autofocus and a 120 degree wide angle lens means users get sharp, detailed visuals even in tight well casings. Advanced HDR imaging is tuned for low light and high contrast conditions, which matters a lot when you are looking into a dark well where lighting is never perfect. The goal is simple, reveal more of what is actually down there.
Durability is another strong point. These cameras are built from corrosion resistant stainless steel and rated to 250 meters, which is around 820 feet. They are even pressure tested beyond that depth. With a compact 39 millimeter diameter, the camera fits easily into typical well casings. Integrated pressure sensing and IMU data add extra layers of insight, helping users understand not just what they see but also the conditions around the camera.
A Control System Built for the Field
Having a good camera is only half the story. The hand controller that comes with these systems acts as a compact control center. It features a 7 inch IPS daylight readable touchscreen that shows live footage clearly even under bright sunlight. A quad core 64 bit processor running at 1.5 GHz keeps everything responsive, with hardware accelerated HD video encoding and decoding.
The system runs on a Linux based embedded platform optimized for inspection work. That means intuitive software, on the fly video annotations, and easy access through USB and network ports. Media saves directly to a USB drive, while a high speed Ethernet link keeps communication with the camera reliable in real time. A removable sunshield is a small but thoughtful touch that improves visibility when working outdoors.
Portability That Makes a Difference
One of the biggest barriers to well inspection is often the logistics. Heavy equipment, complex setup, and the need for multiple people can turn a simple job into a major operation. ProxyViz borehole cameras take a different approach. Each system is designed for fast, simple setup in the field. The reel can include an integrated level wind, depth encoder, pipe hanger, and adjustable brake. The tether is a 5 millimeter polyurethane jacketed cable reinforced with Kevlar and fitted with IP69 rated connectors for durability in harsh environments.
All systems include quick swappable battery packs and a fast charger so inspections can keep moving without long delays. Weighing under 40 pounds, every system is truly one person portable. The Pro and Ultra packages even include a rugged hard carry case with a custom foam insert, keeping everything organized and ready to go.
Photogrammetry and Visibility Enhancement
Two features really set these systems apart. The first is photogrammetry. Because the camera captures such high quality 1080P digital imaging with high intensity LED lighting, users can take overlapping frames and process them with photogrammetry software. This reconstructs the well structure and generates accurate 3D point clouds and digital models of the well interior. Instead of just looking at a flat video, users get a detailed model they can measure and document. That is a powerful upgrade over traditional inspection methods.
The second feature is visibility enhancement. The onboard real time processor applies advanced haze filtering during inspections. This reduces visual noise caused by suspended particles in the water, which is a common problem in cloudy or disturbed wells. By digitally enhancing contrast and filtering scattered light, the system reveals structural details that would otherwise be hard to see. The result is cleaner, more usable footage even in challenging water conditions.
Choosing the Right System
There are three main packages to consider. The Lite model starts at 2,499 dollars and includes a single reel with 50 meters of tether, expandable to 100 meters. It runs on an M18 Li ion battery and comes with a 7 inch daylight touchscreen, one USB port, one Ethernet port, and a 64 GB USB drive for storage.
The Pro model at 3,499 dollars steps up to 100 meters of tether, expandable to 150 meters, and includes two battery packs along with a detent pin brake. The Ultra model at 6,999 dollars offers 150 meters of tether, expandable to 250 meters, a self locking winch, and a dual reel option. All three come with a one year warranty, and centering skids are available as an optional add on.
On the camera side, there are two configurations. The single camera setup has one downward facing camera, while the dual setup adds a side camera with 360 degree endless pan capability. Both options share the same 39 millimeter diameter, 1080P resolution, and 250 meter depth rating.
Why This Matters for Well Owners and Inspectors
Whether you are a well contractor, a homeowner with a private well, or someone managing multiple water systems, having a reliable way to inspect downhole conditions is invaluable. Problems like cracked casings, sediment buildup, or failing screens are much easier to address when you can actually see them. ProxyViz borehole cameras make that level of insight accessible without the massive price tag that traditional systems often carry.
The combination of high definition imaging, portability, smart control features, and advanced processing tools makes these systems a practical choice for anyone who needs clear answers about what is happening underground. For those who want to learn more, visiting the ProxyViz website is a good place to start.
