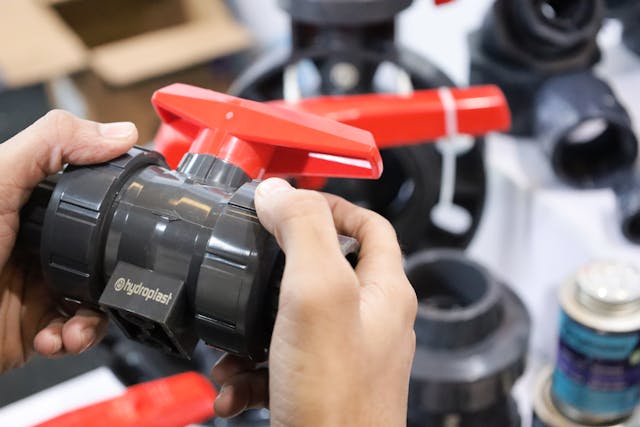

Ball valves are a critical component in fluid control systems used in industries like oil and gas, power, mining, and chemical processing. But not all ball valves are the same. The seat – the surface that seals against the ball to stop flow – determines how well ball valves perform. Soft-seated ball valves are common, but metal-seated ball valves have performance advantages under demanding conditions. Choosing the right material is essential for reliability, reducing maintenance costs, and maximizing performance in high-stress environments.
Why metal-seated ball valves are superior
Metal-seated ball valves are designed to withstand conditions that degrade soft seats. For example, they perform well when exposed to high heat, abrasion, particulates, and intense pressure cycles. These valves have sealing surfaces made from hardened metals or alloys, making them far more durable in the long term. For example, ValvTechnologies’ V Series metal-seated ball valves are designed for absolute zero-leakage and can reliably operate in environments with extreme abrasion and thermal stress.
- They’re built for durability. Metal seats withstand severe conditions without cracking or deforming under mechanical and thermal stress.
- They can handle extreme temperatures. Metal-seated valves can handle temperatures up to 1,500 °F (815°C) and sometimes higher, which is far beyond the limits of soft-seated valves.
- They have high pressure and class ratings. Metal-seated valves are engineered to meet ASME/ANSI Classes 150-4500 and maintain integrity when exposed to high pressure.
- They resist abrasion and erosion. Hard metal surfaces resist wear from abrasive fluids that degrade soft polymers.
- They have a low lifecycle cost. Although the initial cost is higher, reducing downtime and maintenance makes metal-seated valves less expensive over the valve’s lifetime.
When used to control high-pressure steam or abrasive slurries, these characteristics make metal seats the optimal choice.
The limitations of soft seats
Soft-seated ball valves use thermoplastics and PTFE to create “bubble-tight” shutoff, and it works at moderate temperatures and pressures. They work well for clean media and light-duty service, but they’re extremely limited in demanding conditions.
Soft seats start to degrade at temperatures above 450°F (232°C), and fluids containing particulates wear soft seats fast, causing leaks and frequent maintenance. They also require replacement more often, which increases downtime and money spent on parts. These limitations are the reason engineers only use soft seats for clean fluids and moderate temperatures.
Metal is better for certain operating environments
Metal seats excel in high pressure and high temperature environments like the conditions in refineries, petrochemical plants, and power generation. They maintain seal integrity at high pressures that would crush soft seats. For instance, boilers and steam service go through thermal cycling that only metal seats can handle. They’re also resistant to shocks and experience less impact compared to soft materials.
For industrial processes involving suspended solids, corrosive agents, and other chemicals, metal seats are far more resilient compared to soft seats. Hard metals and carbides are resistant to the cutting and grinding impact caused by abrasive slurries, and they can withstand acid, high salinity, and corrosive gases.
Metal costs more up front but is still cheaper
Soft-seated valves are significantly cheaper to purchase, but over time, that fails to remain true due to the cost of critical system failure. You’ll pay more for metal seats up front but they’ll last significantly longer. Fewer failures mean predictable performance and better compliance with safety standards.
When to choose metal over soft seats
Understanding your process conditions is the most important factor to consider when making your selection. Metal isn’t always the best choice, but knowing when it is will save you money and time, and reduce risk.
- High temperature/high pressure processes. Know the limits of soft seats. If your application exceeds those limits, you need metal seats.
- Abrasive or particulate media. Soft seats get destroyed by fluids with solids.
- Severe cycling or shock loads. Frequent thermal or pressure cycling requires metal seating.
- Critical systems where failures are costly. When downtime causes big financial loss, metal seats reduce that risk.
- Regulated or safety-critical installations. Metal seats offer stability you can’t get from soft seats. Compliance and safety standards typically favor designs with predictable, stable performance.
Considering your long-term costs will help you make the right choice for your application. Metal-seated ball valves outperform soft-seated options in environments with extreme pressure, temperature, and abrasion. However, soft seats provide unmatched leak performance for less intense conditions.
With metal seats, you’ll get durability and lower lifecycle costs, so the smartest decision isn’t about what’s cheaper upfront. If your process is harsh and unpredictable, metal seats are more favorable. Soft seats still have their place, but when failure is costly, it’s not worth the risk.
