Unlocking the Potential of Core Drilling Machines: A Comprehensive Guide

Unlocking the Potential of Core Drilling Machines A Comprehensive Guide

When we build or make things, getting every detail right is super important. That’s where core drilling machines come in handy, especially when we need to drill holes in hard materials like concrete or metal. Think of these machines as super-efficient drillers that not only make holes but also take out a piece of the material, which we call a “core.” This is really useful because we can check the core to learn more about the material we’re drilling into.

This comprehensive guide aims to demystify core drilling machines, shedding light on their design, functionality, and the immense benefits they offer to various industries.

Understanding Core Drilling Machines

Core drilling machines are cool tools that help us make holes in hard stuff like concrete or metal. But they’re a bit different from your regular drill. Instead of just making a hole, they also take out a piece from the middle. This piece is called a “core.” It’s like using a cookie cutter on dough, but for really tough materials. We can look at this core to learn more about what we’re drilling into. This is super useful for all kinds of jobs, from building houses to studying rocks.

What’s really neat about these machines is how they make such clean and exact holes. Imagine needing to run a pipe through a wall without cracking the whole thing. That’s where a core drilling machine comes in. It drills through, taking care not to mess up the rest of the wall. This precision is why these machines are so important in construction, making things like plumbing and wiring a lot easier.

What Makes Core Drilling Machines Unique?

The uniqueness of core drilling machines lies in their ability to drill precise, clean holes while preserving the structural integrity of the surrounding material. This precision is crucial in various applications, from creating openings for plumbing and electrical installations in buildings to extracting geological samples for analysis.

Components and Design

Components and Design

Core drilling machines are complex yet fascinating tools. Let’s simplify and explore the main parts that make them work so well.

1. Motor: The Power Source

Think of the motor as the machine’s heart. It gives the machine the power it needs to drill. Motors can be strong or more gentle, depending on the job. They make sure the drill bit can spin fast enough to cut through tough stuff like concrete.

2. Drill Bits: The Cutting Edge

Drill bits are the heroes that do the actual drilling. They’re made from very hard materials, like diamond, to cut through almost anything. The bits are shaped to not only drill but also to pull out a “core.” They come in various sizes to match different tasks.

3. Base: The Steady Hand

The base keeps the machine stable while it works. It’s like the machine’s feet, holding it down so it doesn’t move around. Sometimes, for big jobs, the base is even anchored down to make sure it’s extra steady.

4. Column and Carriage: The Guiding Structure

These parts work together to guide the drill bit. The column stands tall, keeping everything in line. The carriage moves up and down along the column. This lets the drill bit go deeper into the material smoothly and under control.

5. Water: The Coolant

Drilling can get really hot. To cool things down and keep dust away, water is used. It flows over the drill bit, cooling it and washing away dust. This helps the drill bit last longer and makes the drilling safer and cleaner.

Types of Core Drilling Machines

Core drilling machines are not a one-size-fits-all tool. They come in different shapes and sizes, each designed for specific tasks and environments. Let’s dive into the main types of core drilling machines and what sets them apart.

Handheld vs. Rig-Mounted Core Drilling Machines

First, we have handheld and rig-mounted machines. Handheld core drills are all about mobility and flexibility. They’re lighter and perfect for quick jobs or drilling in tight spaces. Think of using a handheld drill when you need to make a few holes in a wall or floor but don’t need the power of a big machine.

Rig-mounted drills, on the other hand, are the heavy-duty option. They’re mounted on a stand or rig, which makes them stable and able to tackle larger and deeper drilling tasks. These are the machines you’d use for big construction projects where precision and power are key.

Power Source: Electric, Hydraulic, and Pneumatic

Next, let’s talk about what powers these machines. Core drills can be electric, hydraulic, or pneumatic.

Electric core drills are the most common, especially for indoor use. They’re easy to handle, just plug them in, and you’re ready to go. They work well for most drilling jobs, especially in residential or commercial buildings.

Hydraulic core drills are the powerhouses. They’re used for very tough drilling tasks, like cutting through thick concrete or heavy steel. These machines are often seen in large construction sites and can handle almost anything you throw at them.

Pneumatic core drills use compressed air to work. They’re great for places where electricity might be risky, like wet environments or places with flammable materials. These drills are often used in mines or by utility companies.

4: Applications of Core Drilling Machines

Applications of Core Drilling Machines

Core drilling machines are the unsung heroes in a variety of fields, thanks to their precision and efficiency. These machines are not just about making holes; they play critical roles in numerous applications across different industries. Let’s explore some of the key areas where core drilling machines make a significant impact.

Construction and Infrastructure

In the construction world, core drilling machines are indispensable. They are used for creating precise openings for plumbing, electrical conduits, and HVAC systems in buildings. Whether it’s installing new fixtures or retrofitting old buildings with modern amenities, core drills ensure that the necessary holes are made cleanly and precisely, without damaging the surrounding structure.

Concrete Sampling and Testing

Core drilling plays a vital role in assessing the integrity of concrete structures. By extracting core samples from existing concrete, engineers can test the material for strength, density, and composition. This is crucial for safety inspections, especially in older buildings or structures that have undergone significant stress or environmental exposure.

Mining and Geological Exploration

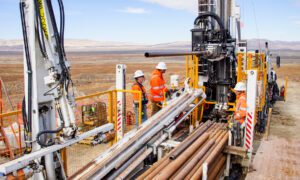

In mining and geological exploration, core drilling machines are used to extract samples from deep within the earth. These samples, often taken from hundreds or even thousands of feet below the surface, provide valuable information about the composition, structure, and location of mineral deposits. This information is essential for mining operations to be both efficient and environmentally responsible.


Core drilling machines exemplify the perfect blend of precision, power, and innovation. Whether it’s in construction, mining, or any other field that requires precise drilling operations, these machines play a crucial role in ensuring the job is done right. Understanding their design, operation, and applications not only showcases their importance but also highlights the ongoing need for innovation in the tools we rely on for progress and development.
