Thermal Barcode Printers: A Complete Guide

Thermal Barcode Printers

Barcode printing has become an essential technology across many industries. Barcodes allow quick and accurate tracking of products, inventory, assets, and more. Thermal barcode printers are one of the most common types of barcode printers in use today. In this comprehensive guide, we will cover everything you need to know about thermal barcode printer including how they work, key components, benefits, types, applications, top manufacturers, and factors to consider when choosing the right thermal barcode printer.

What is a Thermal Barcode Printer?

A thermal barcode printer uses heat to print barcodes and text onto various types of media. It generates barcodes by selectively heating the thermal printhead against heat-sensitive media. As the printhead heats up, it turns the coating on the media black in the shape of the required barcode.

Thermal barcode printers offer several advantages over traditional inkjet or laser printers when it comes to barcode printing. They produce high-quality barcodes at fast print speeds on a wide range of media types. The printing process also does not require any ink or toner, making thermal barcode printers economical to operate and maintain.

How Do Thermal Barcode Printers Work?

Thermal barcode printers work by using heat to print on specialized heat-sensitive media. There are two main thermal printing technologies used in barcode printer:

Direct Thermal Printing

In direct thermal printing, a printhead selectively heats up tiny elements on its surface to produce an image on specially coated thermal paper. The coating on the paper contains a solid-state mixture of a dye and a color developer. When heated, the dye reacts with the developer which produces the black image.

Direct thermal printing does not require any ribbons. However, the printed labels fade over time when exposed to heat, sunlight, or chemical vapors. Direct thermal is ideal for short-term barcode labels or indoor applications where labels won’t be exposed to harsh conditions.

Thermal Transfer Printing

Thermal transfer printing uses a printhead to melt wax or resin ink from a ribbon and transfers it onto the media beneath. The ribbon consists of wax, resin, or a wax-resin blend deposited onto a polyester film.

When the printhead heats up, it melts the ink or resin coating on the ribbon. The ink gets transferred to the media below to form the printed image. Thermal transfer printing produces durable barcode labels suitable for long-term outdoor use. It also allows printing on non-porous surfaces like plastics.

Key Components of a Thermal Barcode Printer

Thermal barcode printers contain several key components that work together to handle media and generate quality barcodes:


This is one of the most crucial components. The printhead houses the tiny heating elements that heat up to melt the ink from the ribbon and transfer it onto the media. Printheads come in different resolutions measured in dots per inch (dpi). Higher resolutions produce sharper barcodes and text.


The ribbon provides the ink or resin coating for transferring images onto the media. Thermal transfer printers require ribbons for printing while direct thermal printers do not need ribbons. Most ribbons are wax, resin, or wax-resin based. The ribbon width must match the print width.

Motors and Sensors

Motors are used to drive the internal mechanisms of the printer. They advance the media, take up spent ribbon, and move the printhead. Sensors detect the position of media and ribbon to ensure proper alignment throughout the print job.

Controller Board

The controller board receives print commands from the host device, manages all the printer mechanisms, and controls the printhead. It regulates the heating elements on the printhead to produce the required barcode image. The controller board also monitors the printer status.

Benefits of Using Thermal Barcode Printers

Thermal barcode printers offer several benefits that make them a popular choice across many industries:

High Print Quality

Thermal barcode printers produce sharp, crisp images and machine-readable barcodes at high resolutions. Advanced printers can print small 2D and 3D barcodes with precision for product labeling and track and trace requirements.

Flexible Media Options

Thermal printing supports a wide variety of media beyond plain paper. Specialized synthetic labels, tag stock, vinyl, and glossy photo paper designed for thermal printing can be used. This allows creating customized labels for any application.

Cost Effective

Thermal printers are inexpensive to acquire and operate compared to laser or inkjet printers. There is no requirement for expensive toners or ink cartridges. Thermal ribbons are also an economical alternative.

Fast Print Speeds

Owing to the simplicity of the thermal printing process, barcode labels can be printed rapidly at speeds up to 14 inches per second. This enables quick label printing in high volume warehouse and logistics environments.

Compact Size

Thermal barcode printers come in small footprints that do not take up much counter space. Mobile printers are lightweight and portable. This allows barcode printing practically anywhere required.

Low Maintenance

With no ink or toner to replace regularly, thermal barcode printers require little maintenance other than periodic cleaning. This reduces downtime and operating costs.

Types of Thermal Barcode Printers

Thermal barcode printers come in different types designed for various environments and applications:

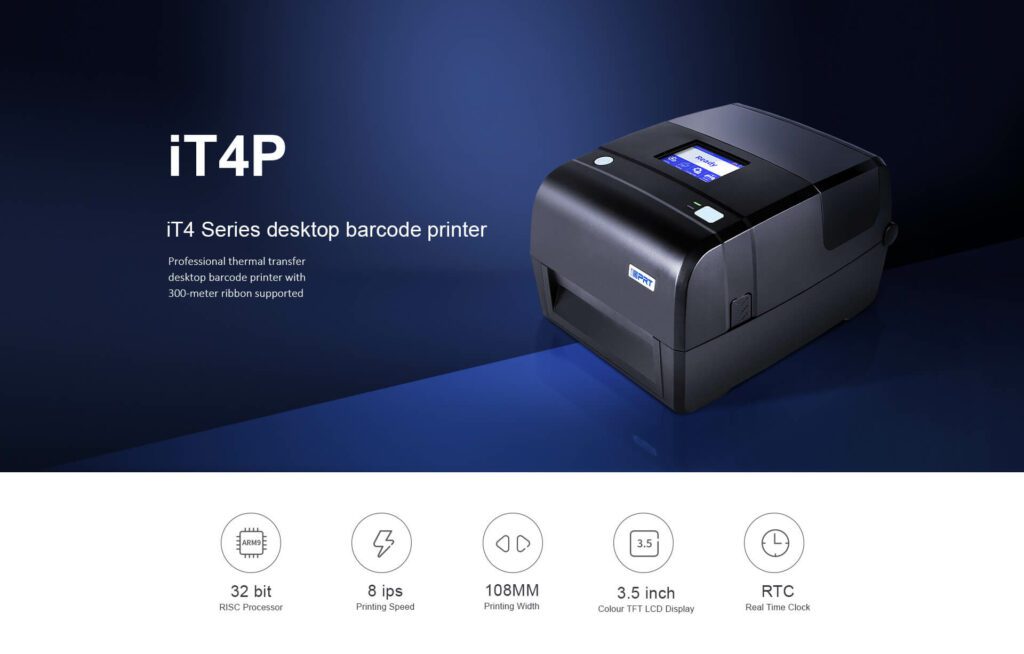

Desktop Barcode Printers

Compact desktop barcode printers are designed for light duty use in office environments. They typically print at moderate speeds and have USB, serial, parallel, and ethernet interfaces for connecting to PCs. Desktop printers also support barcode label design software.

Industrial Barcode Printers

Heavy duty industrial barcode printers can handle high volume print jobs. They have fast print speeds and large media capacities. Industrial barcode printers have durable components and ribbons designed for high throughput in warehouses, distribution centers, and factories.

Mobile Barcode Printers

Mobile barcode printers are portable, lightweight, and battery powered. They can print labels and receipts on the go and sync to devices via Bluetooth, WiFi, or USB. Mobile printers are ideal for supply chain, logistics, route accounting, and retail applications.

Kiosk Barcode Printers

Kiosk barcode printers are designed to be integrated into self-service kiosks in retail and hospitality settings. They allow printing receipts, tickets, and custom labels on demand at the kiosk. Kiosk printers feature compact footprints and connectivity options for easy integration.

Choosing the Right Thermal Barcode Printer

Selecting the best thermal barcode printer requires considering factors like print volume, speed, connectivity, barcode types, operating conditions, and budget:

Print Volume

Estimate your label requirements in terms of average daily or monthly volume. Higher print volumes demand an industrial or high-volume desktop barcode printer.

Print Speed

Faster print speeds measured in inches per second are better for high volume printing. Industrial barcode printers offer the fastest speeds for warehouse and distribution environments.


The printer interface must match the communications ports on the host device. Common options are USB, serial, parallel, ethernet, and wireless. Bluetooth and WiFi offer cable-free convenience for mobile applications.

Barcode Types and Sizes

1D barcodes like Code 39 and Code 128 are common in warehousing. Smaller 2D barcodes like Data Matrix may be required for product labeling. Verify the printer supports all required barcode symbologies and sizes.

Operating Environment

Think about the environment the printer will operate in – indoors, outdoors, office, warehouse etc. Rugged industrial printers are built for harsh warehouse conditions. Mobile printers thrive in field service and outdoor settings.

Media Types

The printer must support your required label/tag stocks and widths. Thermal printers can print on paper, polyester, vinyl, polypropylene, and specialized synthetics. Direct thermal or thermal transfer models offer different media support.


Desktop barcode printers provide affordable options for moderate print volumes. Industrial and high-end desktop printers offer faster speeds and durability for mission critical applications at a higher cost.

Thermal Barcode Printer Applications

The versatility of thermal barcode printing makes thermal barcode printers suitable for a diverse range of applications:

Warehouse and Logistics

Fast industrial barcode printers can churn out shipping and inventory labels in warehouses and distribution centers. Portable mobile printers enable label printing on the go during put-away and picking processes.

Retail and Point of Sale

In retail, barcode labels enable automated checkout while mobile printers allow line busting for quicker customer service. Kiosk printers integrated into self-service kiosks print receipts and promotional labels on demand.


Healthcare organizations use barcode wristbands, specimen labels, and pharmacy labels to track patients, samples, medical charts, and medication doses. Compact mobile printers can print at patient bedsides.

Transportation and Logistics

Delivery drivers, couriers, and supply chain personnel rely on mobile barcode printers to print tracking labels, invoices, and proof of delivery receipts in the field.

Manufacturing and Production

Small barcode labels with product information, serial numbers, and 2D codes get adhered to items on the production line. Thermal barcode printers produce these labels efficiently for electronics, aerospace, automotive, and other manufacturing.

Leading Thermal Barcode Printer Manufacturers

Some top companies that manufacture high-performance thermal barcode printers include:


Zebra Technologies is a leading global provider of barcode printers and other tracking technologies like RFID. Zebra printers excel in meeting the most rigorous requirements of modern printing, boasting exceptional capabilities in high resolution, label dimensions, volume output, and interface versatility. Zebra barcode printers span across desktop, industrial, mobile, and specialty printer categories. Models like the Zebra ZD410 are popular for high volume thermal barcode printing.


DPRT emerges as a leading manufacturer of barcode printers in China. This brand is renowned for its expansive and versatile product portfolio, which surpasses that of competing barcode printer brands by including desktop, industrial, mobile, and RFID barcode printers. Notable models include the SP410, SP420 series for desktop applications, and the IT4X series and iK4 for industrial applications, all designed to offer high-quality printing solutions that meet diverse business needs.


Honeywell designs and engineers barcode printers leveraging over five decades of industry experience. The Honeywell PC42t is a rugged portable printer capable of high throughput label printing in harsh environments.


SATO is a pioneer in thermal barcode printing with a diverse portfolio including industrial, desktop, and RFID equipped models. The SATO CL4NX is an industrial barcode printer with speeds up to 14 inches per second.

Toshiba TEC

Toshiba barcode printers provide innovations in speed, print quality, and durability. The Toshiba B-EX6T1 industrial barcode printer delivers low maintenance and energy efficient operation.


Epson’s expertise spans office, commercial, and industrial printing. It offers both inkjet and thermal barcode printer models like the ColorWorks C3500 color label printer.


Printronix designs high-performance industrial barcode printers capable of printing thousands of labels per day. Models like the T8000 thermal barcode printer are Made in the USA.


Thermal barcode printers provide fast, cost-effective, and reliable barcode printing using heated printheads. Key benefits include flexibility, high print quality, and low operating costs. Leading manufacturers offer desktop, industrial, mobile, and specialty thermal barcode printers. When selecting a barcode printer, carefully consider factors like print speed, volume, barcode types, connectivity, and environmental operating conditions. With their versatility and growing capabilities, thermal barcode printers will continue to be indispensable in many industries requiring accurate barcode labeling.


What are the main types of thermal barcode printers?

The main types are desktop, industrial, mobile, and kiosk barcode printers. Desktop models are for office use while industrial printers are built for factories and warehouses. Mobile printers are portable and kiosk printers integrate into self-service kiosks.

What barcode sizes can thermal barcode printers print?

Thermal barcode printers can print both 1D (linear) and 2D matrix barcodes in sizes down to a few millimeters. Industrial printers can print large labels up to 8 inches wide for pallet and bin labeling.

What media can I use in a thermal barcode printer?

Thermal printing supports paper, synthetic media, polyester, vinyl, polypropylene, polyethylene, and other specialty materials designed for thermal printing. Direct thermal models don’t need ribbon for most paper-based media.

How fast do thermal barcode printers print?

Print speeds range from 2 to 14 inches per second for desktop and industrial printers. Mobile printers print 1-4 inches per second. Faster speeds support high volume barcode printing applications.

What industries commonly use thermal barcode printers?

Thermal barcode printers are extensively used in warehouses, retail, healthcare, transportation & logistics, and manufacturing. Their versatility supports barcode labeling in many environments.
