How to Choose The Appropriate Resistor

Appropriate Resistor

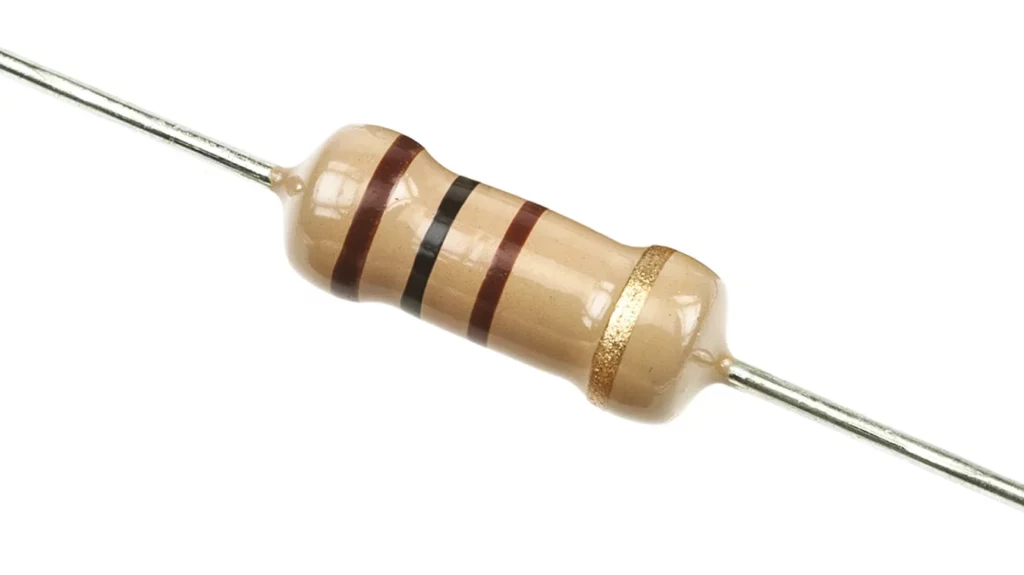

Resistors are key parts used in electrical circuits because they are crucial in regulating energy flow. They can alter a circuit’s frequency response, split voltage, and restrict current. It may very well be challenging to pick the Appropriate Resistor that is best for your specific application, however, because countless assortments are available. But the elements you should take into account while buying a resistor for your circuit are covered in this article for your better understanding.

1. Resistance Value

When choosing an Appropriate Resistor , the resistance value should be considered first and foremost. The opposition to the passage of electricity is measured in ohms (), and resistance is expressed as such. Resistors are accessible in a wide assortment of values, from a couple of ohms to numerous megaohms, and picking the right worth is urgent to getting your circuit to act as you need it to. Using Ohm’s equation, R = V/I, you may calculate the voltage and current in your circuit to find the resistance value.

2. Tolerance

The greatest allowed departure from the prescribed resistance value is the resistor tolerance. Since most resistors have a tolerance of 5%, the actual resistance value may vary by 5% from the value indicated. But resistors with tolerances as low as 0.1% are crucial for precise applications. Ensure you buy resistor with the tolerance needed for your circuit.

3. Energy Rating

The greatest amount of power that a resistor can safely dissipate without overheating or burning out is indicated by its power rating. A resistor’s power rating, expressed in watts (W), must withstand the anticipated power dissipation in your circuit. In a high-power circuit, a resistor with a low-power rating may soon overheat and burn out.

4. Temperature Coefficient

A resistor’s temperature coefficient quantifies how the temperature affects the resistance value of the resistor. Most resistors have a positive temperature coefficient, which demonstrates that when the temperature climbs, so does their opposition. Then again, certain resistors have a negative temperature coefficient, showing that their opposition falls as the temperature increases. Select a resistor whose temperature coefficient corresponds to the range of temperatures in your circuit.

5. Size

Choosing the right resistor may require careful consideration of a resistor’s physical size. From tiny surface-mount resistors to enormous through-hole resistors, resistors come in various sizes and forms. Select a simple resistor to install, change, and fit your circuit board.

6. Composition

Resistors may be produced from various materials, including wire-wrapped carbon, carbon composition, carbon film, and metal. Selecting a resistor that meets the needs of your circuit is crucial since every material has distinct properties and performance requirements. While wire-wrapped resistors are employed in high-power applications because of their high tolerance and low-temperature coefficient, carbon film resistors are the most prevalent and frequently used.

7. Environmental Conditions

The environment in which the resistor will work must also be considered. Temperature, humidity, and vibration are just a few environmental conditions under which resistors may be subjected. To guarantee long-term dependability and performance, buy a resistor that can survive the environmental conditions in which it will function.


Careful evaluation of several criteria, including resistance value, tolerance, power rating, temperature coefficient, size, composition, and environmental circumstances, is necessary when choosing the right resistor for your circuit. By picking the appropriate resistance, you can ensure that your circuit works as planned and produces the required outcomes.
