In 2026, Bitcoin mining hardware is no longer judged by nameplate hashrate alone. As hashprice compresses and network difficulty rises, Bitcoin ASIC efficiency increasingly determines how long a machine can remain above its shutdown price. Yet J/TH is only the starting point. The power efficiency ratio shapes miner-side electricity demand, while mining rack density determines how much usable hashrate a facility can extract from limited power, cooling capacity and rack space.
This benchmark compares selected air- and hydro-cooled miners using published standard-mode specifications, then translates those figures into electricity cost and infrastructure burden. Purchase price, site-level PUE, uptime, batch variation and service coverage remain outside the calculation and should be assessed separately.
Air Cooling Economics Begin with the Existing Site

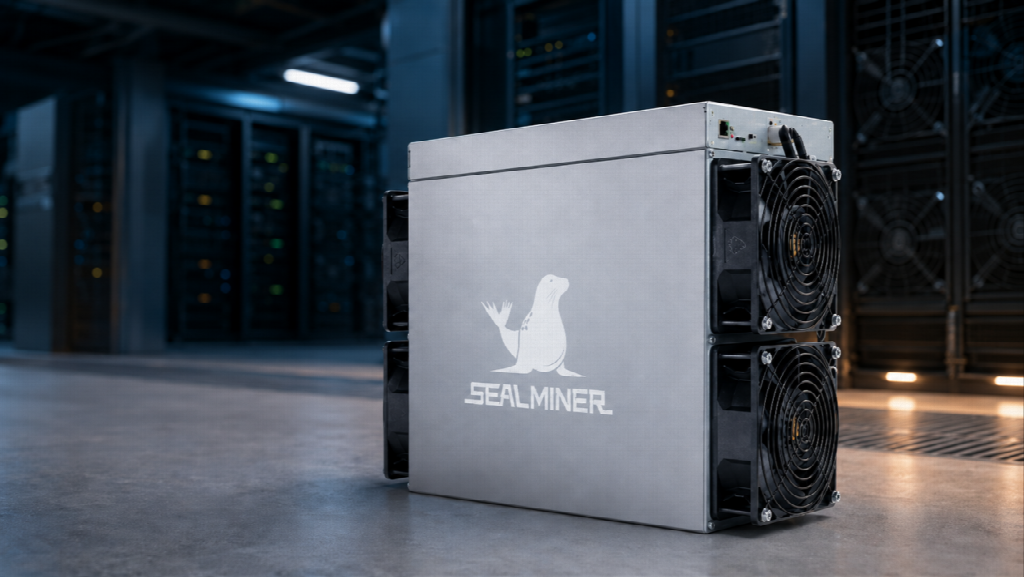

For an established air cooling farm, a sensible upgrade adds hash rate without forcing a site redesign. Standard ratings provide the cleanest comparison:
| Miner | Standard Hashrate | Power | Efficiency |
| SEALMINER A4 Pro Air | 336 TH/s | 3,662.4 W | 10.9 J/TH |
| Antminer S21 XP | 270 TH/s | 3,645 W | 13.5 J/TH |
| WhatsMiner M70S+ | 244–280 TH/s | ≈3.14–3.50 kW | 12.5 J/TH |
| Avalon A16XP | 300 TH/s | 3,850 W | 12.8 J/TH |
The M70S+ power range is calculated from its published hash rate and efficiency.
On published standard settings, the A4 Pro Air leads this selected group in both hashrate and power efficiency. The Antminer S21 XP remains an important market reference because of its established deployment base, while the Avalon A16XP comes closer on hashrate but draws more power. Purchase price, delivery timing, firmware maturity and service coverage may still alter the final procurement decision.

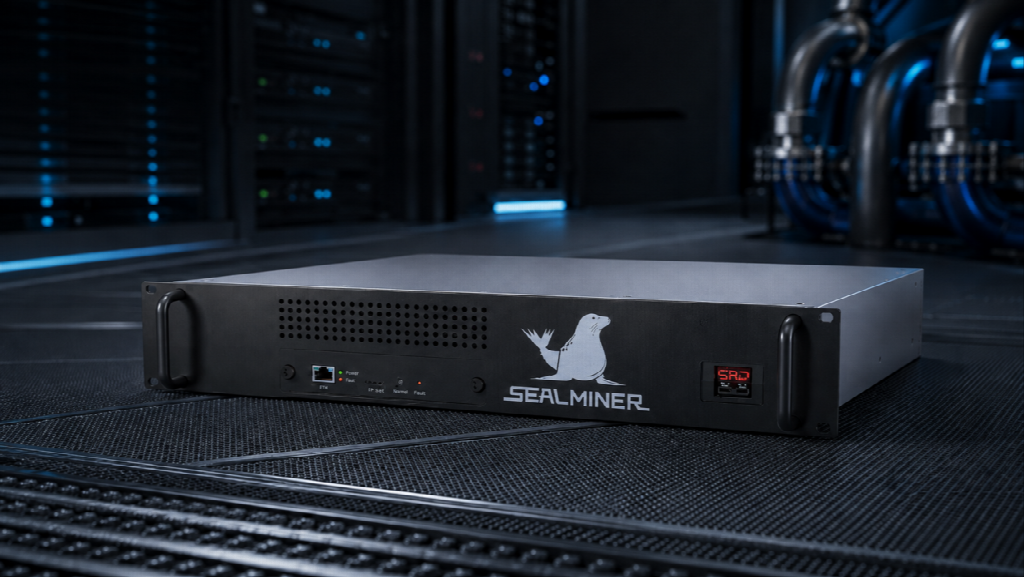

Hydro Cooling Moves Rack Space onto the Balance Sheet
Hydro cooling shifts the constraint. Coolant flow, rack power and chassis height can cap a build before floor area does, so each miner must be read as part of a system:
| Miner | Standard Hashrate | Power | Efficiency | Form Factor / Net Weight | Hashrate per Rack Unit |
| SEALMINER A4 Ultra Hydro | 886 TH/s | 8,372.7 W | 9.45 J/TH | 2U / 21 kg | ≈443 TH/s/U |
| Antminer U3S23H | 1,160 TH/s | 11,020 W | 9.5 J/TH | 3U / 42 kg | ≈387 TH/s/U |
| WhatsMiner M73 | 512 TH/s | 7,424 W | 14.5 J/TH | 2U / 27.5 kg | 256 TH/s/U |
| Avalon A1566HA | 460 TH/s | 8,200 W | 17.8 J/TH | 2U / 20 kg | 230 TH/s/U |
The Antminer U3S23H leads the group in absolute output at 1,160 TH/s, making it the strongest single-machine performer in the comparison. Rack-level economics produce a different order. The A4 Ultra Hydro delivers approximately 443 TH/s per rack unit, compared with about 387 TH/s/U for the U3S23H, 256 TH/s/U for the WhatsMiner M73 and 230 TH/s/U for the Avalon A1566HA.
The A4 Ultra Hydro also combines its 2U format with a net weight of 21 kg. Compared with the 42 kg U3S23H, that represents approximately 21 metric tons less equipment mass across a 1,000-unit deployment. The difference can affect freight planning, installation labor, rack loading and RMA handling. It should not be mistaken for total site capacity, however. CDU capacity, coolant flow, branch-circuit limits, pipe pressure and maintenance clearance still determine how much of the theoretical rack density can be used in practice.
Operating Modes Add Flexibility Beyond Nameplate Efficiency
Nameplate efficiency is only part of the operating case when electricity prices change by hour or season. The SEALMINER platform supports Low Power, Normal and High-Performance modes, allowing operators to reduce power draw during demand-response events or high-tariff periods and increase output when electricity is abundant.
For the A4 Ultra Hydro, the reported 1 PH/s result belongs to High-Performance Mode and should be treated as a mode-specific test, while the published 886 TH/s rating remains the appropriate procurement baseline.
Electricity Turns Ratios into Cash Cost
At $0.06/kWh, electricity cost per PH/s shows the margin effect. Site PUE, pumps, pool fees and downtime are excluded:
| Miner | Efficiency | Daily Electricity Cost per PH/s |
| SEALMINER A4 Ultra Hydro | 9.45 J/TH | $13.61 |
| Antminer U3S23H | 9.5 J/TH | $13.68 |
| SEALMINER A4 Pro Hydro / A4 Pro Air | 10.9 J/TH | $15.70 |
| Avalon A16XP | 12.8 J/TH | $18.43 |
| Antminer S21 XP | 13.5 J/TH | $19.44 |
| WhatsMiner M70S | 13.5 J/TH | $19.44 |
| WhatsMiner M73 | 14.5 J/TH | $20.88 |
| Avalon A1566HA | 17.8 J/TH | $25.63 |
At $0.06/kWh, the difference between 9.45 and 9.5 J/TH is about $26 per PH/s annually, too small to determine a hydro-cooling purchase on its own. At this efficiency level, rack density, unit power, cooling design, serviceability and operating flexibility are likely to have greater influence on deployment economics.
Larger efficiency gaps are more consequential. Moving from 12.8 to 10.9 J/TH lowers annual miner-side electricity cost by roughly $999 per PH/s, while the gap between 17.8 and 9.45 J/TH is about $4,389. At fleet scale, such differences can materially affect shutdown thresholds and the amount of hashrate that remains viable during weaker market conditions. These figures exclude purchase price, facility PUE, cooling loads, uptime and maintenance, all of which remain essential to a complete cost assessment.
Final Assessment
The SEALMINER A4 series addresses three deployment priorities. Pro Air fits established air cooling sites, Pro Hydro supports a measured transition to hydro cooling, and Ultra Hydro targets operations constrained by power and rack space. The series does not lead every specification, while price, batch performance, uptime and market conditions will still determine payback.
Its broader value lies in how it reframes fleet planning. SEALMINER places less emphasis on headline hash rate alone and more on useful output per watt, rack unit and kilogram. That balance may help mining operations preserve a longer operating runway when hashprice weakens and seemingly minor infrastructure costs begin to shape profitability.
