A Look at the Main Technology Behind 3D Printing

A Look at the Main Technology Behind 3D Printing

3D printing has gained significant popularity and application across various industries. This revolutionary technology allows for the invention of three-dimensional objects by adding material coatings to each other. To understand the inner workings of 3D printing, examining the primary technology behind this groundbreaking process is essential. 3D printing plays such an important part in society currently and will continue to do so in the future so it’s vital to understand how it works.

1. Stereolithography (SLA)

Stereolithography, or SLA, is one of the primary technologies used in 3D printing. It involves using a liquid photopolymer resin that is solidified layer by layer using a light source, typically an ultraviolet (UV) laser. The process begins with a digital 3D model sliced into thin layers. These layers are sequentially exposed to the UV laser, causing the liquid resin to solidify and bond, forming the desired object.

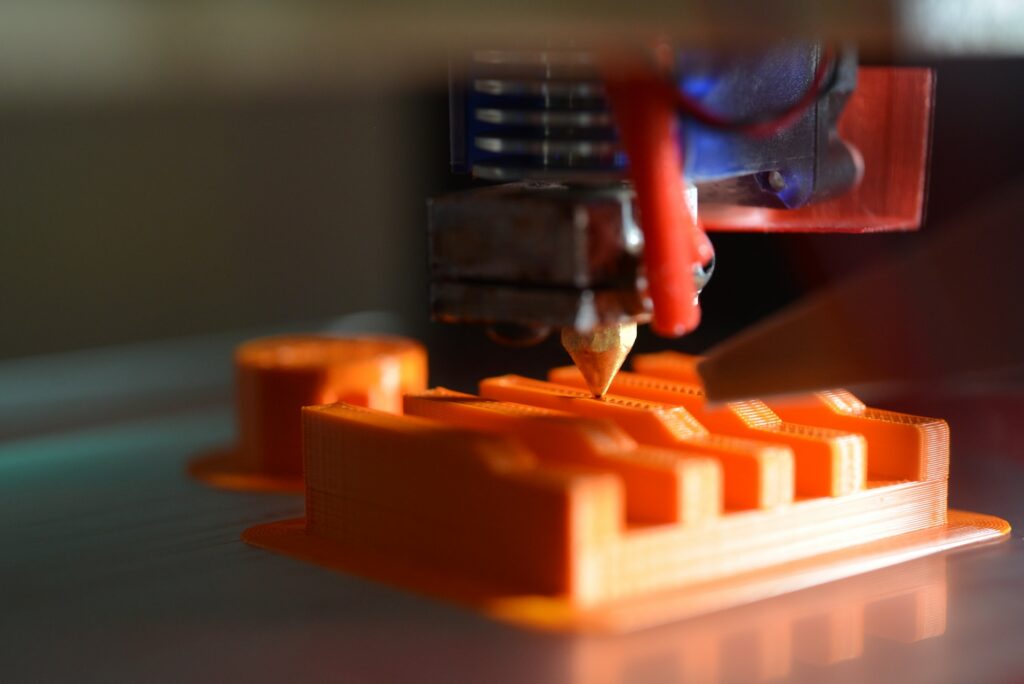

2. Fused Deposition Modeling (FDM)

Fused Deposition Modeling, or FDM, extrudes a thermoplastic filament through a heated nozzle, which moves in a predetermined pattern to create the object layer by layer. The filament is fed from a spool and is heated to its melting point, allowing for precise deposition and adhesion. As the material cools down, it solidifies, forming a stable structure. FDM technology offers versatility in material selection and is commonly employed in aerospace, automotive, and consumer goods industries.

3. Selective Laser Sintering (SLS)

Selective Laser Sintering, or SLS, is a 3D printing technology that utilizes a high-powered laser to selectively fuse powdered materials, typically polymers or metals, layer by layer. The process begins with a thin layer of powdered material spread across a build platform. The laser scans the object’s cross-section, selectively sintering or melting the powder particles to create solid layers. After each layer is completed, a new layer of powder is spread, and the process is repeated until the entire object is formed.

4. Digital Light Processing (DLP)

Digital Light Processing, or DLP, is a technology that shares similarities with SLA. It utilizes a digital light projector to selectively cure liquid resin, layer by layer, to form the desired object. Instead of a laser, a digital micromirror device (DMD) or liquid crystal display (LCD) projects UV light onto the liquid resin. The UV light triggers the photopolymerization process, solidifying the resin and creating the object. DLP technology offers fast print speeds and is commonly employed in the jewelry, dentistry, and art industries.

5. Binder Jetting

Binder Jetting involves selectively depositing a liquid binding agent onto thin layers of powdered material, such as metal, sand, or ceramic. The process begins with a thin layer of powder spread across a build platform. The printer applies the liquid binder in the pattern corresponding to the object’s cross-section, bonding the particles. A new powder coating is applied and repeated when every layer is finished. Binder Jetting is known for its speed in rapid prototyping, architectural models, and tooling applications.

Various technologies drive 3D printing, each offering unique advantages and applications. As 3D printing technology advances, we can expect even greater innovation and adoption across numerous industries, paving the way for a future of endless possibilities.
