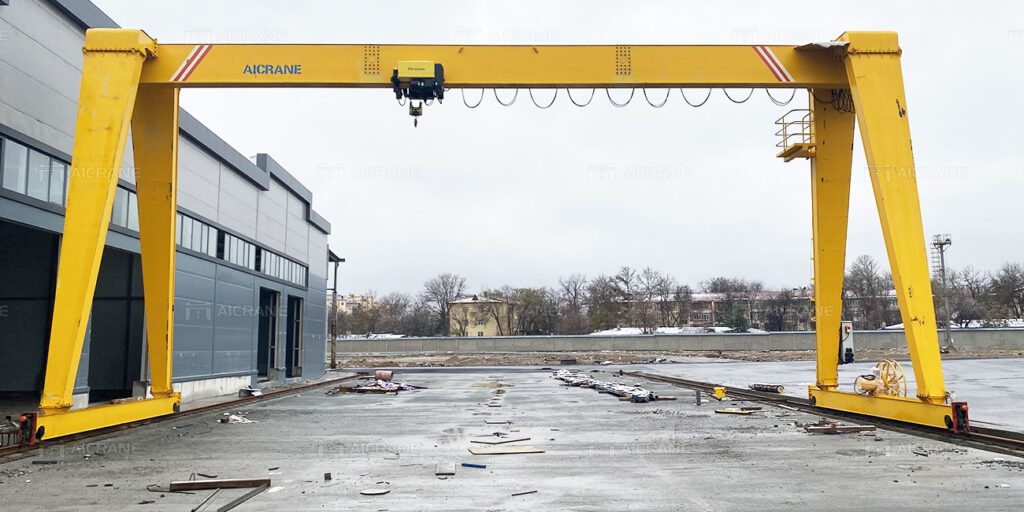

A single girder gantry crane is a type of overhead crane that is commonly used in construction sites, factories, and warehouses to lift and move heavy materials. In this guide, we will provide a comprehensive overview of single girder gantry cranes, including their components, types, working principles, and safety precautions.
Components of Single Girder Gantry Crane
A single girder gantry crane consists of the following components:
- Bridge: The bridge is the main component of the crane, which spans the gap between two supporting structures. It is typically made of steel and consists of a single girder that supports a trolley and hoist.
- Hoist: The hoist is a lifting device that is attached to the trolley and is used to lift and lower heavy materials.
- Trolley: The trolley is a mobile platform that runs on rails and carries the hoist along the length of the bridge.
- Runway: The runway is a set of rails that support the trolley and allow it to move along the length of the bridge.
- Legs: The legs are the vertical supports that hold the bridge in place. They are typically made of steel and can be fixed or mobile.
Types of Single Girder Gantry Crane
There are two main types of single girder gantry cranes:
- Portable gantry crane: This type of crane is designed to be moved easily from one location to another. It is typically used in workshops, factories, and construction sites where materials need to be lifted and moved to different locations.
- Fixed gantry crane: This type of crane is permanently installed and is typically used in factories and warehouses where materials need to be lifted and moved in a fixed location.
Working Principle of Single Girder Gantry Crane
A single girder gantry cranes melbourne works by using a hoist to lift and lower heavy materials. The hoist is attached to a trolley that runs along the length of the bridge, which is supported by legs. The operator controls the movement of the crane using a remote control or pendant.
To operate the crane, the operator first positions the trolley and hoist over the material to be lifted. The hoist is then lowered and attached to the material using a hook or other attachment. The operator then uses the remote control or pendant to lift the material and move it to the desired location.
Safety Precautions for Single Girder Gantry Crane
When using a single girder gantry crane, it is important to follow these safety precautions:
- Ensure that the crane is properly installed and maintained.
- Only operate the crane if you have been trained and authorized to do so.
- Never exceed the rated capacity of the crane.
- Always inspect the crane and its components before use to ensure that they are in good working condition.
- Use appropriate personal protective equipment, such as hard hats and safety glasses.
- Follow proper lifting procedures, including properly attaching the load and using appropriate rigging.
- Keep a safe distance from the crane and the load when it is in operation.
- Do not operate the crane in inclement weather conditions or if there is a risk of lightning.
- Always use caution when operating the crane near power lines or other electrical hazards.
In summary, single girder gantry cranes are versatile and efficient lifting devices that are commonly used in a variety of industrial settings. By understanding the components, types, working principles, and safety precautions of these cranes, operators can ensure that they are used safely and effectively.
